Continuous Flight Auger Piles (CFA)
Comprehensive Turnkey Solutions
-
>50
Units of own equipment
-
>150
Qualified employees
-
2
Production bases in Moscow and Saint Petersburg
-
200+
Civil and industrial construction projects
About the Technology:
CFA (Continuous Flight Auger) technology is a modern method of installing bored piles without soil excavation, providing high load-bearing capacity and minimal environmental impact. This method combines drilling, concreting, and reinforcement in a single continuous process, making it one of the most efficient solutions for creating deep foundations on various soil types.
- Preparation and Layout — precise determination of pile locations according to the project.

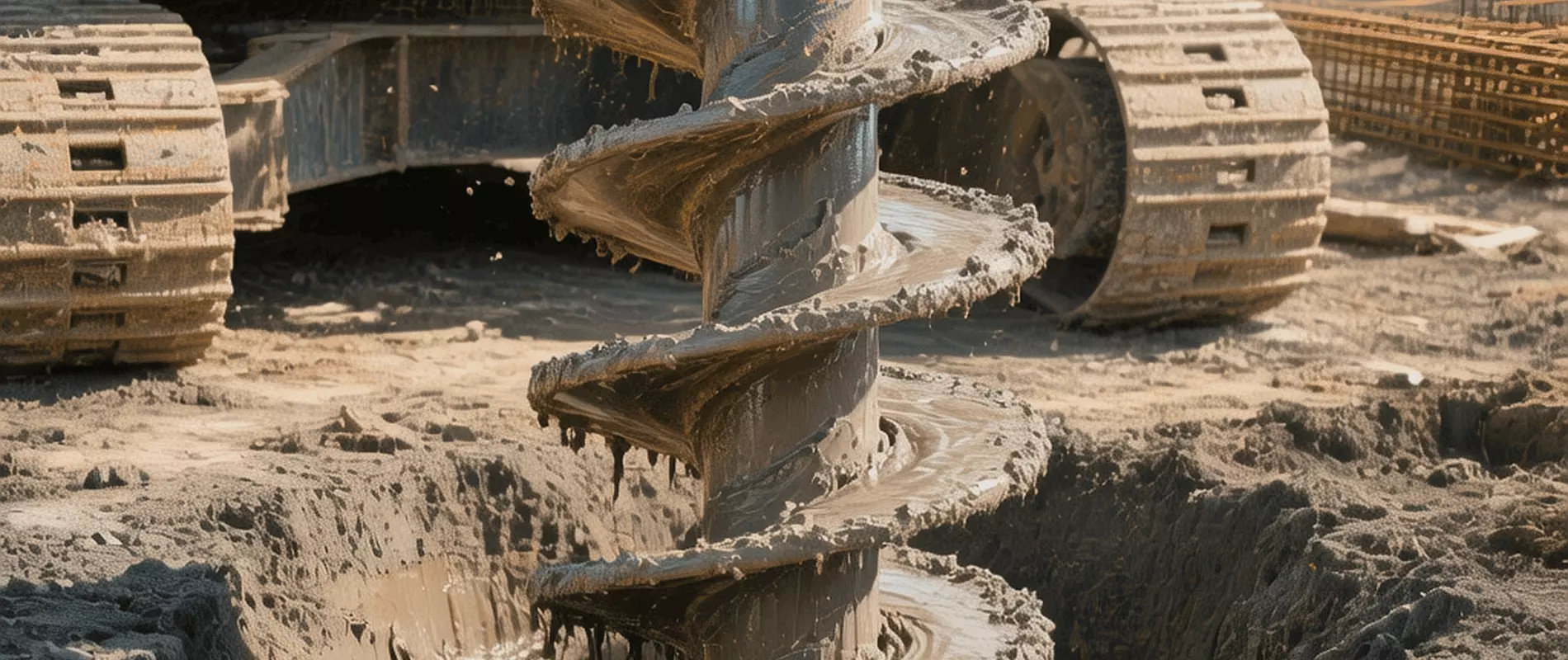

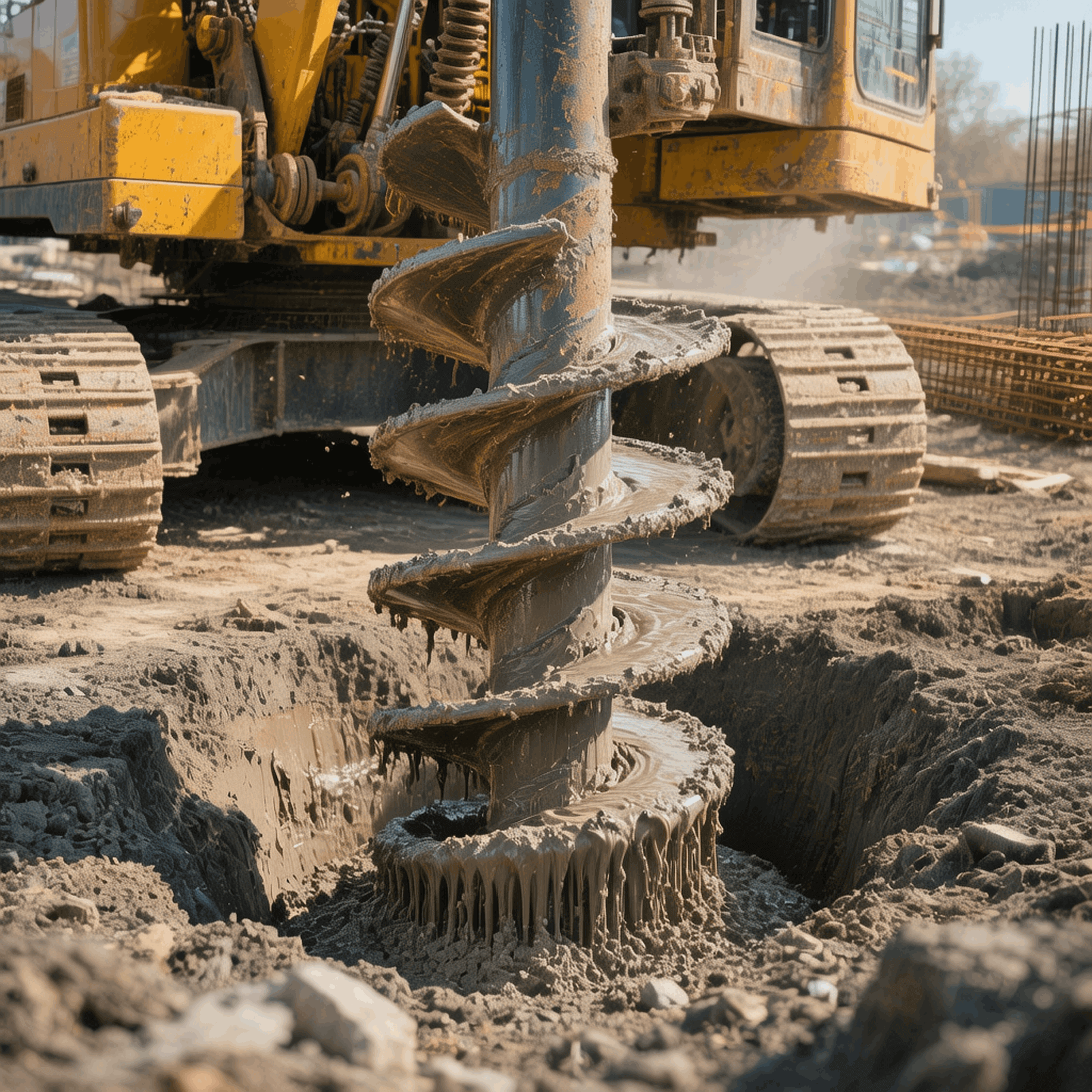

- Continuous Drilling — lowering the auger (hollow helical stem) to the design depth.
- Concrete Supply — injecting concrete mix under pressure through the hollow auger.
- Reinforcement Installation — placing the reinforcement cage into the freshly placed concrete.
- Pile Head Formation — final works on arranging the upper part of the pile.
Key Features and Advantages of CFA Technology
-
Speed and Quietness
The continuous cycle of drilling and concreting eliminates downtime, and the low noise level allows work in confined urban conditions near existing buildings.
-
Borehole Stability
The auger serves as temporary support, preventing borehole walls from collapsing even in water-saturated and loose soils, thus eliminating the need for casing pipes.
-
Reinforcement
The ability to place reinforcement cages into fresh concrete to full depth ensures high pile load-bearing capacity and reliable bonding of materials.
-
Drilling Parameter Control
Onboard electronics precisely control verticality and concrete volume, guaranteeing void-free filling and improving soil adhesion through pressure.
-
Versatility of Application
The method is effective in a wide range of soils (including high groundwater levels) and allows piles of various diameters and depths for any type of facility.
-
We will Calculate the Cost of Works
Leave your contacts, and our engineer will prepare a preliminary calculation for you
Prices
The cost of installing CFA bored piles is determined by project parameters and construction site conditions. The price is influenced by the diameter and depth of piles, the volume of the pile field, soil characteristics, reinforcement requirements, and equipment access conditions. To calculate the cost, data from engineering-geological surveys, a pile field project, or initial pile parameters, estimated foundation loads, and information about the construction site are required.
| ⌀ 400 | from 5050 |
| ⌀ 450 | from 5250 |
| ⌀ 500 | from 5450 |
| ⌀ 550 | from 5750 |
| ⌀ 600 | from 6250 |
We Will Calculate the Cost of the Works
How We Work
Simple and transparent workflow
Request
We receive initial data about the facilityAnalysis
We study geology, loads, and design solutionsSolution Selection
We determine pile parameters and installation technologyWork Execution
We organize drilling, concreting, and quality controlFacility Handover
We hand over executive documentation for completed worksFrequently Asked Questions
-
Is CFA technology suitable for urban development?
Yes. The method is characterized by low vibration levels and can be used near existing buildings and utility networks.
-
Can work be performed on weak soils?
Yes. The technology allows piles to be installed in a wide range of soils, including water-saturated and weak foundations.
-
Is a completed pile field project required?
It is desirable, but if geology and loads are available, we can prepare a technical solution and preliminary pile parameters.
-
How is pile quality controlled?
Control is carried out based on drilling and concreting parameters, as well as the volume of concrete supplied and the depth of pile installation.
Why Choose Us
-
Full Documentation Support During Work
The foreman keeps all necessary logs, and upon completion of work, we provide all required documentation
-
We Work in Any Region of Russia
All year round, in any weather, even in confined site conditions. We take on tasks where others see difficulties.
-
We Regularly Work on Quality
We improve with every new facility. We work in tandem with the customer and promptly resolve all current issues.
-
Competent Work Planning
Own material and technical base, experienced staff, and a 12-hour working day. Motivation for fast and high-quality work execution. A unique ratio of speed to such quality.
-
We Save Your Money
Transparent estimate, justification for every expense item, and full financial reporting are the basis of our cooperation. We are responsible for every ruble spent.
-
