Sheet Pile Extraction
Professional extraction of sheet piles after work completion using vibro hammers and specialized equipment with preservation of material for reuse.
-
>50
Units of own equipment
-
>150
Qualified employees
-
2
Production bases in Moscow and Saint Petersburg
-
200+
Civil and industrial construction projects
About the Technology

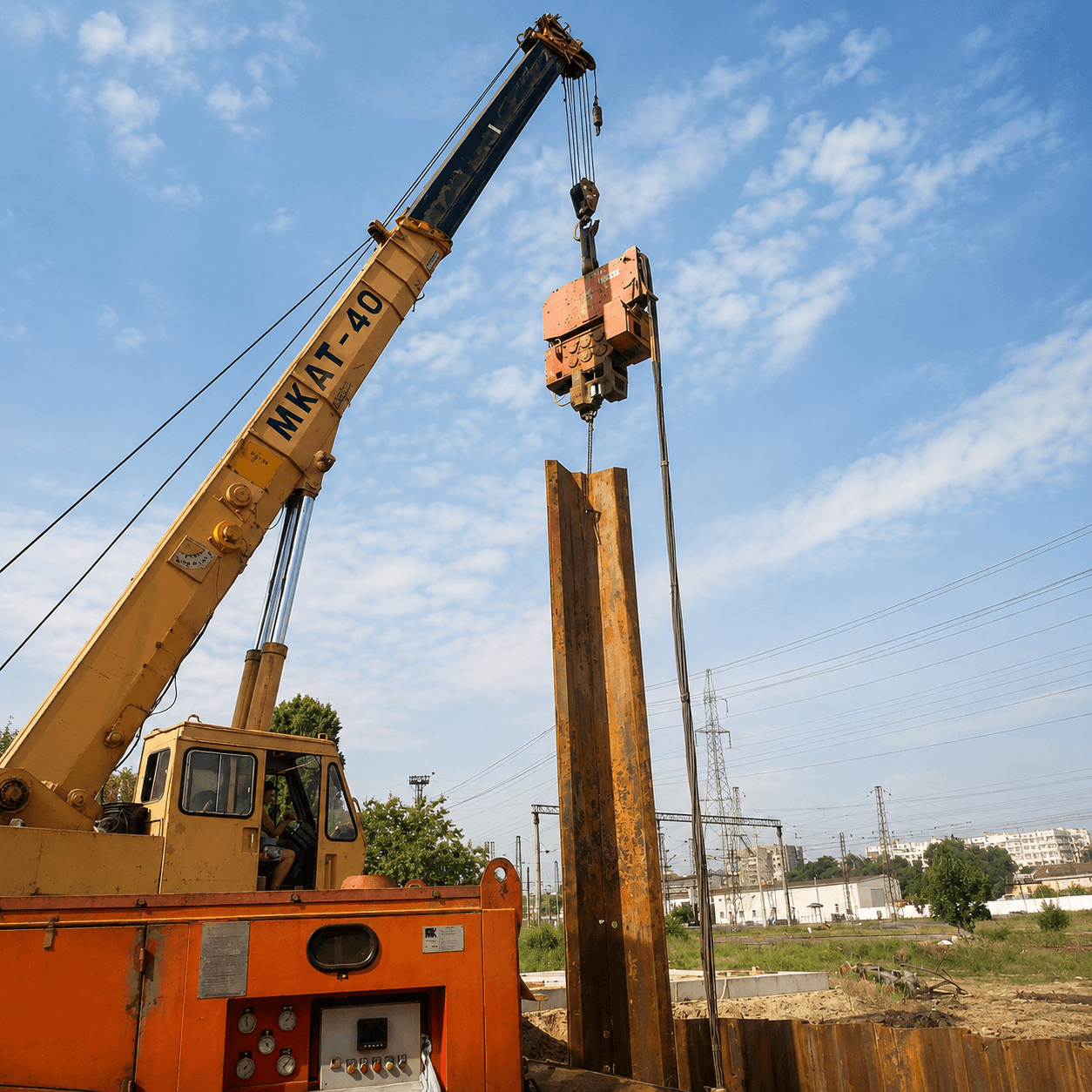

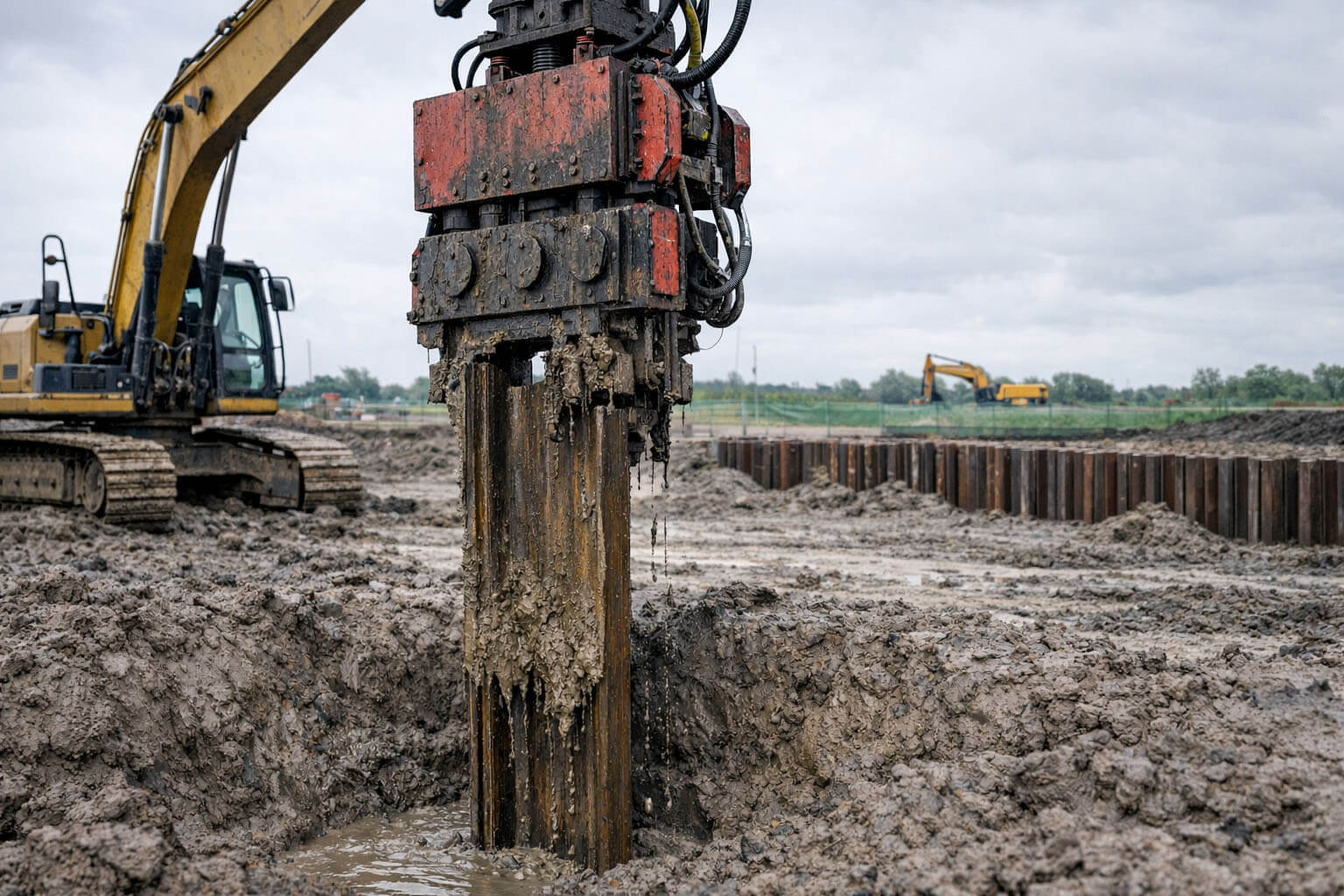

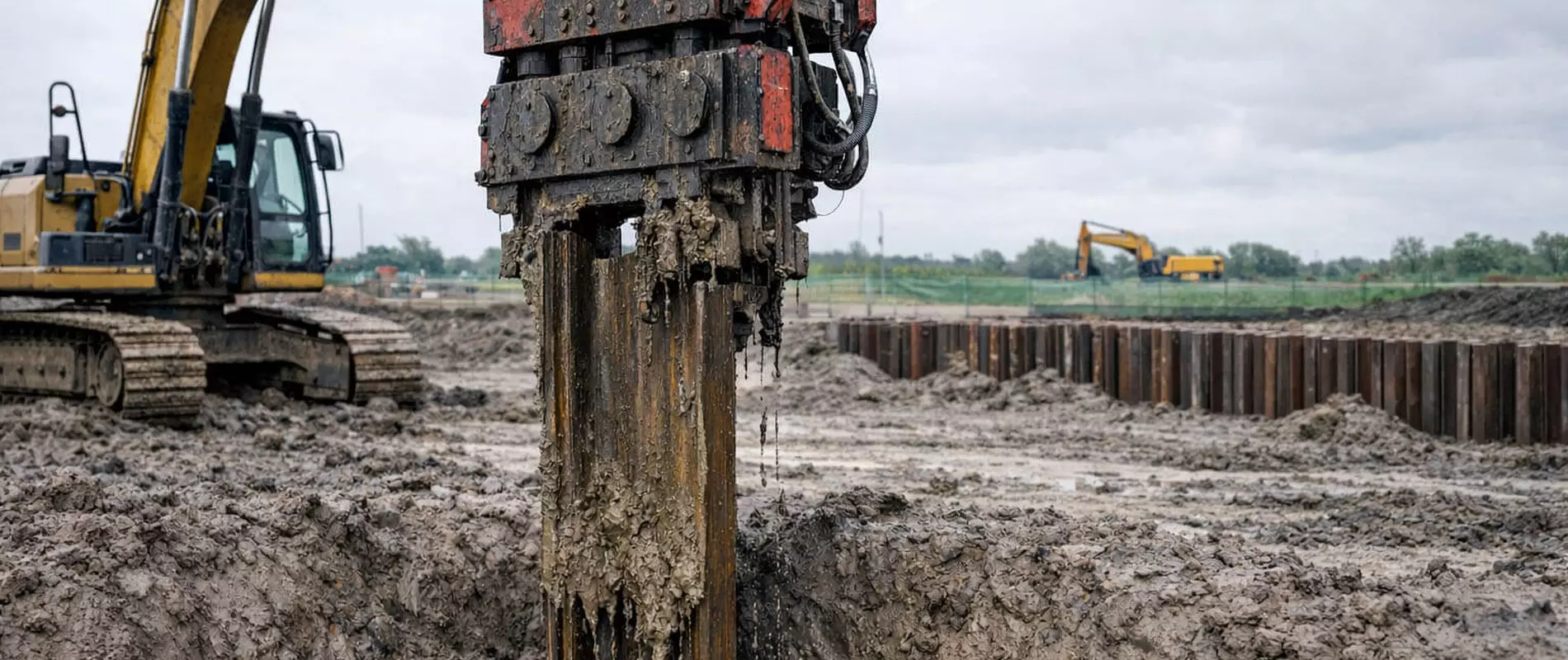

Sheet pile extraction is the process of removing sheet pile walls after completion of excavation work, foundation construction, or other construction stages where the sheet pile enclosure was used as a temporary structure. Extraction is performed using vibro hammers and specialized equipment, which allows safe and efficient removal of sheet piles with preservation of material for further use.
The works are performed in compliance with safety requirements and taking into account site conditions. Before extraction begins, the site is prepared, the extraction sequence is determined, equipment is selected, and control measures are organized to prevent soil deformation and damage to nearby structures.
- Site and Sheet Pile Condition Analysis - we assess the sheet pile wall condition, soil type, extraction depth, nearby structures presence, and possible complications.
- Equipment and Method Selection - we determine the vibro hammer type, crane, grippers, auxiliary equipment, and optimal extraction sequence.
- Work Zone Preparation - we organize equipment access, control area, safe work zone, and measures to prevent deformation.
- Sheet Pile Extraction - we extract sheet piles in the predetermined sequence with control of verticality, uniform load, and absence of damage.
- Material Quality Control and Sorting - we inspect extracted sheet piles, sort by condition, clean, mark, and prepare for storage or reuse.
Advantages
-
Material cost reduction through sheet pile reuse
Extracted sheet piles in good condition can be reused on other projects, significantly reducing material procurement costs.
-
Safe extraction with minimal impact on surrounding structures
We use technology and equipment that allows sheet pile extraction without damaging nearby buildings, utilities, and structures.
-
Ability to extract sheet piles from various soil types
Vibro hammers effectively extract sheet piles from sandy, clay, gravelly soils and complicated conditions.
-
Quality control and sorting of extracted material
After extraction, we inspect each sheet pile, assess its condition, and sort by suitability for reuse or recycling.
-
Compliance with safety and environmental requirements
All works are performed in compliance with safety regulations, taking into account environmental requirements and client's needs.
-
We will Calculate the Cost of Works
Leave your contacts, and our engineer will prepare a preliminary calculation for you
Price
The cost of sheet pile extraction services is determined individually for each project. The price formation is influenced by the sheet pile profile type and length, installation depth, soil characteristics, work volume, extraction sequence, equipment rental conditions, and material transportation distance. Extraction under difficult conditions (dense urban development, limited site access, presence of underground utilities, deep installation) may require additional measures and affect the final price. To obtain an accurate cost, it is necessary to provide information about the sheet pile type, quantity, installation depth, and site conditions. Based on these data, the contractor will prepare a detailed commercial proposal.
How We Work
Simple and transparent workflow
Request
Site Analysis
Method Selection
Extraction
Material Acceptance
Frequently Asked Questions
-
When is sheet pile extraction performed?
Extraction is performed after completion of excavation work, foundation construction, or other construction activities where the sheet pile enclosure was used as a temporary structure.
-
Is it possible to extract and reuse sheet piles?
Yes, if the sheet piles are not damaged during installation and use, they can be extracted and reused on other projects. This significantly reduces material costs.
-
What equipment is used for sheet pile extraction?
Vibro hammers of various capacities, cranes, special grippers, and auxiliary equipment are used. Equipment selection depends on sheet pile type, installation depth, and soil conditions.
-
How is the extraction sequence determined?
The sequence is determined by the project and site conditions. It's important to extract sheet piles in an order that does not compromise the stability of the surrounding soil and nearby structures.
Why Choose Us
-
Own Vibro Hammer Fleet
We select equipment according to sheet pile type, extraction depth, and soil conditions
-
Experience in Complex Conditions
We extract sheet piles from different soil types and near existing structures
-
Site Analysis Before Extraction
We assess sheet pile condition, soil, nearby structures, and select optimal method
-
Material Quality Control
We inspect, clean, sort extracted sheet piles and prepare them for reuse
-
Safety Compliance
All works are performed in compliance with safety and environmental requirements
-
