Berth Wall Construction
Driven and vibratory-driven sheet pile enclosures — construction of berth walls and strengthening of the coastline
-
>50
Units of own equipment
-
>150
Qualified employees
-
2
Production bases in Moscow and Saint Petersburg
-
200+
Civil and industrial construction projects

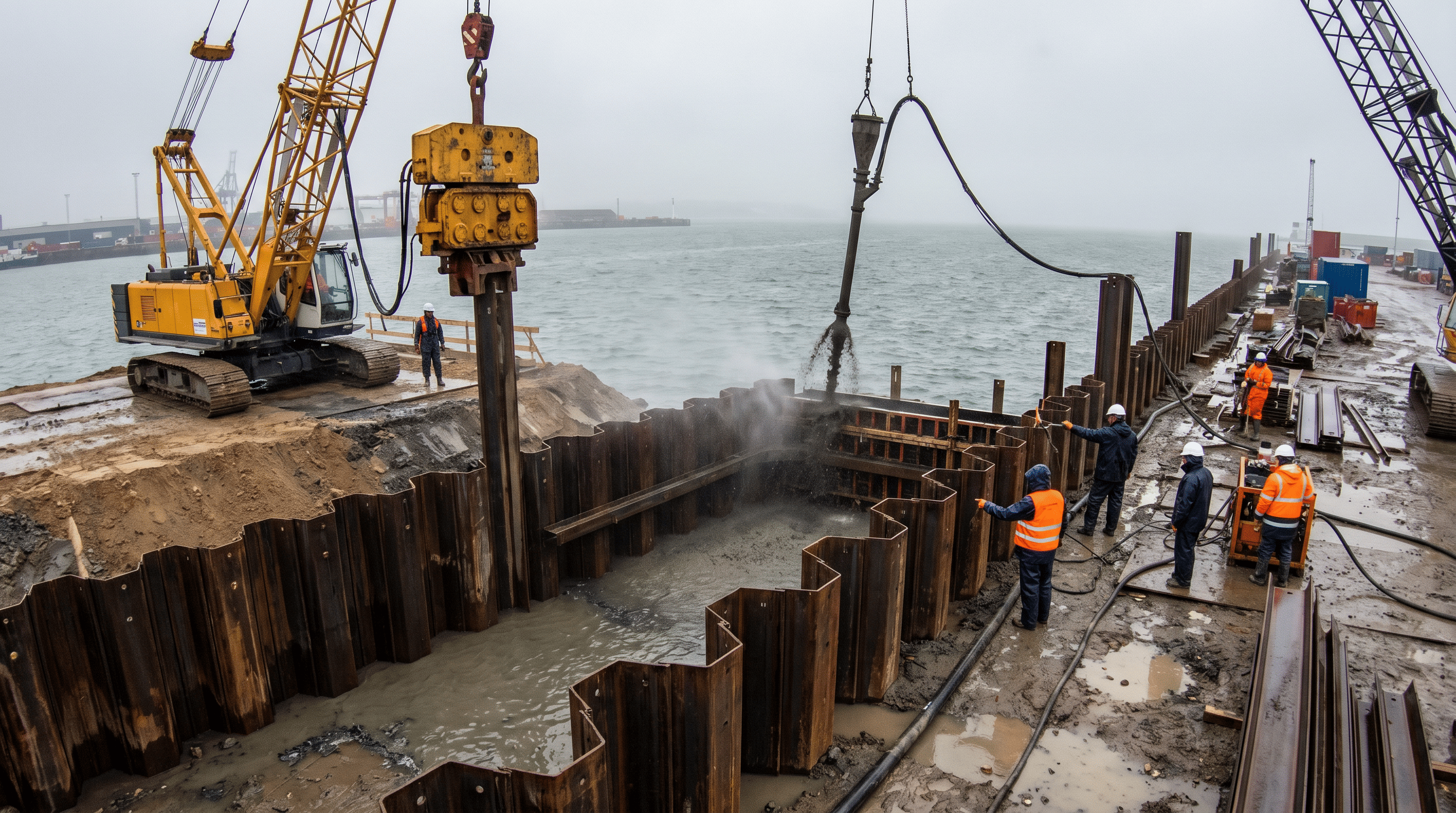

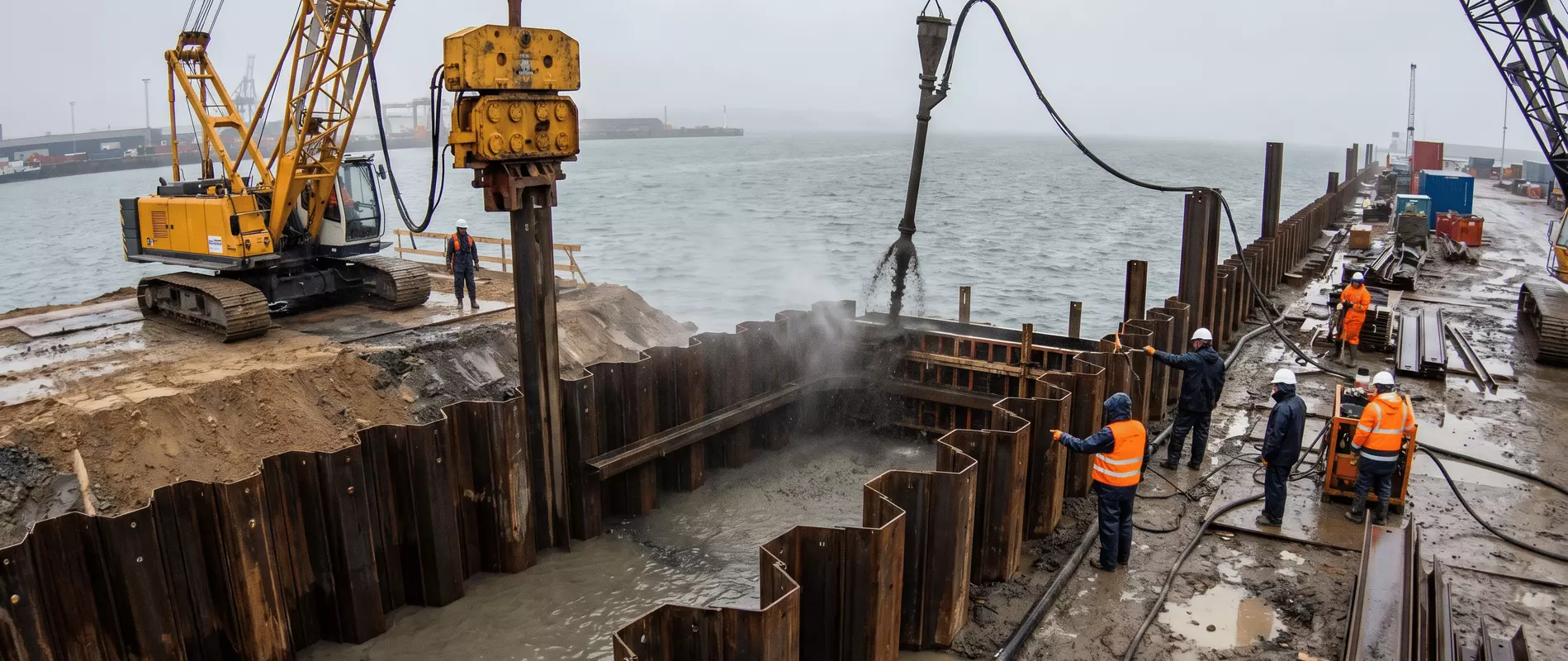

Construction of Berth Walls from Sheet Piles and Concrete
Berth walls are used for the arrangement of the coastline, port facilities, cargo terminals, industrial sites near water, and other hydraulic engineering objects. The structure must withstand soil pressure, water impact, loads from machinery, stored materials, mooring, and operation of the berth area.
Our profile is the construction of berth walls from Larssen sheet piles, including subsequent concreting of the cap, installation of reinforced concrete elements, anchoring, and connection with coastal infrastructure. We also have experience in executing berth walls and hydraulic structures from concrete when the project provides for a monolithic or prefabricated-monolithic solution without sheet pile enclosure.
- Analysis of the project and site conditions - we check design solutions, geology, water level, loads, bottom levels, coastline, and equipment access conditions.
- Selection of structural solution - we determine the scheme of the berth wall: Larssen sheet pile, pipe pile, anchor system, reinforced concrete cap, or concrete structure.
- Preparation of the construction zone - we organize the working platform, access roads, storage of sheet piles, reinforcement, concrete, equipment, and temporary structures.
- Execution of construction and installation works - we perform sheet pile driving, anchor installation, cap concreting, reinforcement installation, formwork, and related works.
- Control and handover of the structure - we check levels, geometry, concrete quality, position of the sheet pile wall, executive documentation, and readiness of the object for operation.
Advantages
-
Suitable for port, industrial, and coastal facilities
Commercial ports, oil terminals, factory berths, embankments, and coastal protection structures — we work with any types of water areas
-
Possibility of constructing berth walls from Larssen sheet piles with concreting
Combined solutions: sheet pile enclosure + monolithic reinforced concrete cap or grillage — maximum rigidity and durability
-
Experience in concrete and reinforced concrete hydraulic structures
Underwater and above-water concreting, reinforcement, installation of sheet pile locks and reverse filters — we work according to hydraulic engineering construction standards
-
High load-bearing capacity and stability of the coastline
Larssen sheet piles are driven to design levels, absorbing horizontal and vertical loads. The coastline is fixed without landslides and erosion
-
Integration of sheet piling, concrete, earthworks, and installation works in one process
One contractor synchronizes vibro-driving, excavation, concreting, and installation of berth equipment — without breaks in deadlines and responsibility
-
We will Calculate the Cost of Works
Leave your contacts, and our engineer will prepare a preliminary calculation for you
Prices
The cost of constructing a berth wall depends on the type of structure, length of the work front, water depth, geology, sheet pile driving levels, volume of concreting, presence of anchors, loads from machinery, and operational requirements. The price is also influenced by access conditions, work from water or shore, equipment delivery, volume of earthworks, and composition of executive documentation. For calculation, project data, engineering-geological surveys, hydrological conditions, berth wall scheme, sheet pile or concrete structure parameters, bottom and top levels of the structure, load requirements, and work organization plan are required. After analysis, it is possible to determine the technology, equipment composition, staging, deadlines, and construction cost.
| Монтаж шпунта, вибропогружение | from 1 000 п.м. |
| Монтаж шпунта, забивка | from 1 200 п.м. |
| Монтаж шпунта, бурение | from 1 500 п.м. |
How We Work
Simple and transparent workflow
Request
Project Analysis
Solution Selection
Work Execution
Handover
Frequently Asked Questions
-
What materials can be used to build a berth wall?
Most commonly, Larssen sheet piles, pipe piles, reinforced concrete elements, or combined solutions are used. Our main profile is sheet pile berth walls with possible concreting, but we also perform concrete structures according to the project.
-
Can the work be performed without a ready-made project?
For the construction of a berth wall, a project and initial engineering data are required. Without a project, it is possible to preliminarily assess the site, possible work schemes, and data required for calculation.
-
Is it possible to work from the shore without equipment on the water?
In some cases, yes. The possibility depends on the depth, shoreline, boom length of the equipment, bearing capacity of the site, and the scheme of sheet pile driving or concrete structure installation.
-
What affects the construction time of a berth wall?
The duration depends on the length of the structure, type of construction, geology, water level, volume of sheet piling and concrete works, material supply, and equipment access conditions.
Why Choose Us
-
Profile in Sheet Pile Structures
We build berth walls from Larssen sheet piles, including driving, anchoring, and concreting
-
Concrete Work Experience
We can perform reinforced concrete elements and berth structures if the project provides for a concrete solution
-
Own Equipment
We select equipment for sheet pile driving, work on the coastline, and execution of related stages
-
Engineering Preparation
We analyze geology, loads, levels, hydrological conditions, and site constraints
-
Comprehensive Work Execution
We integrate sheet piling, concrete, earthworks, installation, and hydraulic engineering works into a single sequence
-
